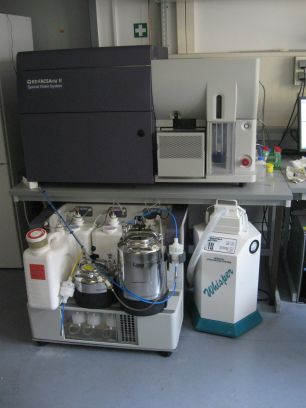

Becton Dickinson FACS Aria II
High-throughput flow cytometer / cell sorter


The FACS AriaII Sorter is a high-end flow cytometer with cell sorting option.The instrument has 4 lasers and is configured for 11 colors plus forward and side scatter.
The machine is equipped with a temperature control system, and has the option to sort up to 4 different populations in parallel into tubes or microplates.

Contact for FACS users:

Dr. Gabriele Schreiber
gabriele.schreiber@staff.hu-berlin.de

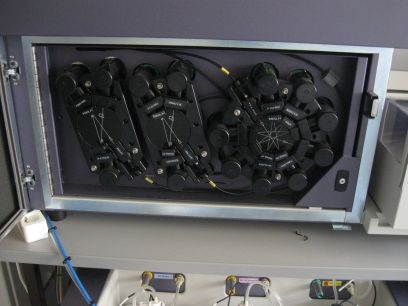

Optical cnfiguration
Excitation Lasers 405 nm 488 nm 561 nm 640 nm
Detection channels

A: 605/40
 B: 525/50
C: 450/50

 A: 710/50
B: 525/50

A: 780/60
B: 710/50
C: 610/20
D: 585/15

A: 780/60
B: 670/14

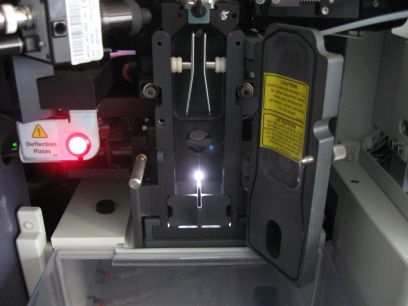

Sorting function 4 different populations in parallel into tubes

individual cells in microplates or onto microscopy slides
